General Information
| Product Code | : | KUS-WHM-35953BIUFPM |
| Brand | : | Jaquar |
| Colours | : | White Matt, Grey Matt, Beige Matt, Black Matt |

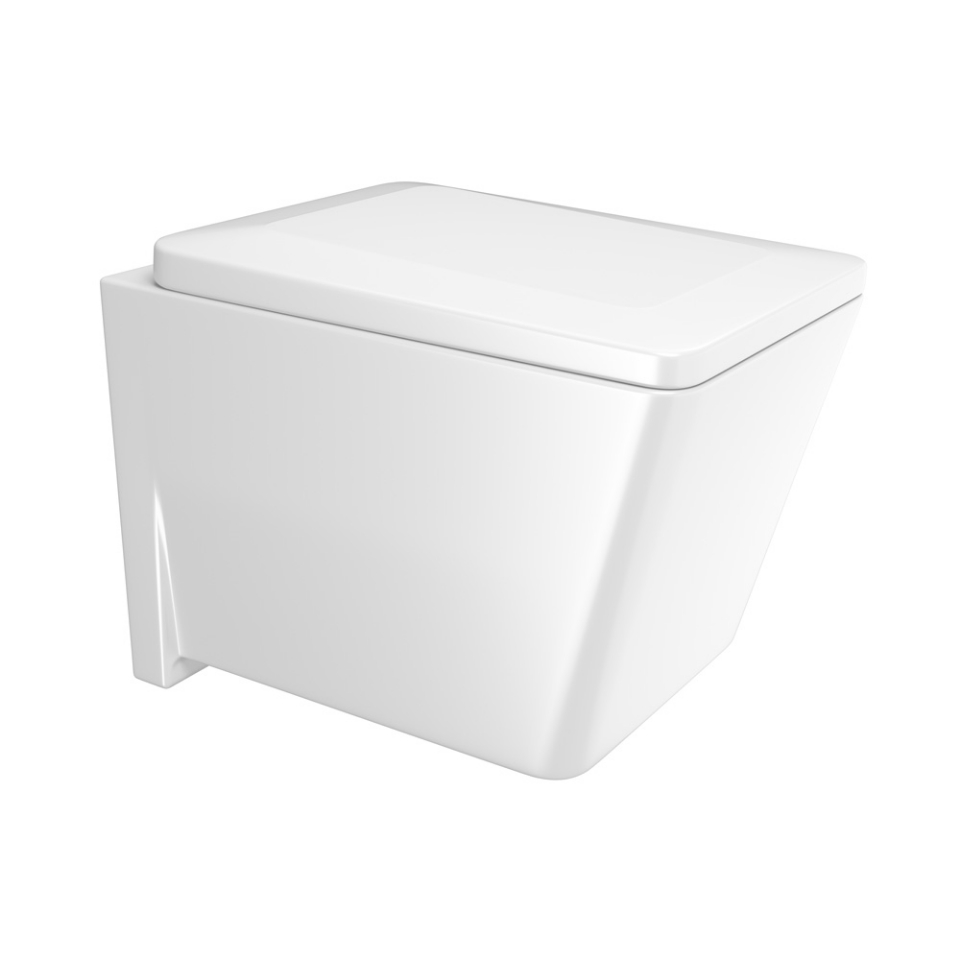

| Type | : | Wall Hung WC |
| Material | : | Ceramic – Vitreous China (VC) |
Product Specification
| Product Dimension | : | 380 × 525 × 375 mm |
| Bowl Inner Dimension | : | 270 × 330 mm |
| Product Net Weight | : | 30 kg |
| Product Gross Weight | : | 35 kg |
| Packaging Dimension | : | 450 × 390 × 535 mm |
| Outlet | : | Horizontal |
| Inlet Hole and Outlet Hole Dimension | : | Internal diameter of inlet hole: Ø 55 +3/-1 mm External diameter of outlet hole: Ø 100 ± 5 mm |
| Vertical Distance Between Floor and Centre Line of Waste Outlet Hole | : | ≤ 210 mm |
Product Features
- Rimless Wall Hung WC
- Blind Installation
- UF Soft Close Seat Cover with Hinges and Accessories Set
- Dual Flush – 3 / 6 LPF
- Anti Germ Glaze
- Trap Glazed
Installation Dimensions
| From Wall Tile Surface to Centre of Seat Cover Fixing Hole (La) | : | As per product installation drawing |
| WC Fixing Wall Thickness (Lb) | : | As per product installation drawing |
| From Wall Tile Surface to Inner Bowl Surface of WC | : | As per product installation drawing |
Accessories Included
| Seat Cover | : | KUS-WHM-35101UFPM |
| Inlet & Outlet Gasket | : | ZPS-WHT-GK01 |
| Fixing Kit | : | ZPS-WHT-FB13 |
Accessories Recommendation
| Rag Bolt | : | ZPS-MST-RB07N |
| Concealed Cistern | : | JCS-WHT-2400S, 2400P, 2400, 2400WS, 2400WP, 2400FS, 2400FP, 2431P, 2431FP, 2431, 2431S, 2431FS |
Care and Cleaning Guidelines
- Vitreous china sanitary ware products are fragile in nature and need to be handled with care at all times during storage, handling and installation and use thereafter to avoid personal injury.
- The product is heavy and it is recommended that two persons hold it while it is being fixed.
- Carefully inspect the new product for damage before installation. It is recommended to inspect the sanitaryware with a wooden hammer.
- Risk of product damage: Over-tightening may cause breakage or chipping of vitreous china. It is recommended to use hard rubber and nylon spacers between ceramic and metal fixtures.
- Risk of external leakage: Do not lift or rock the bowl after placement.
- Always test your cleaning solution on an inconspicuous area on the product before applying it to the entire surface.
- Do not allow cleaners to sit or soak on the product.
- Use a soft, dampened sponge or cloth to clean. Never use abrasive materials such as a bristle brush or scouring pad.
- Wipe surfaces clean and rinse completely with water immediately after applying cleaners.
- Clean chrome and stainless-steel surfaces once a week. Do not use cleaners containing chloride on chrome or stainless-steel surfaces. If used, rinse the surface immediately to prevent corrosion.
- Wherever chrome plating is used on the products, use only warm water to clean and then dry with a soft cloth.
- Recommended to use Genuine Accessories.
Quality Management System
ISO 9001 Certified Quality Management System
Disclaimer
Every effort has been made to ensure that the information provided is accurate and up to date. Product specifications, dimensions, colours, availability and other details are subject to change without prior notice. Please refer to the manufacturer’s latest product documentation for the most accurate information.
