Product Details
| Product Code | : | FLP-CHR-5165PM |

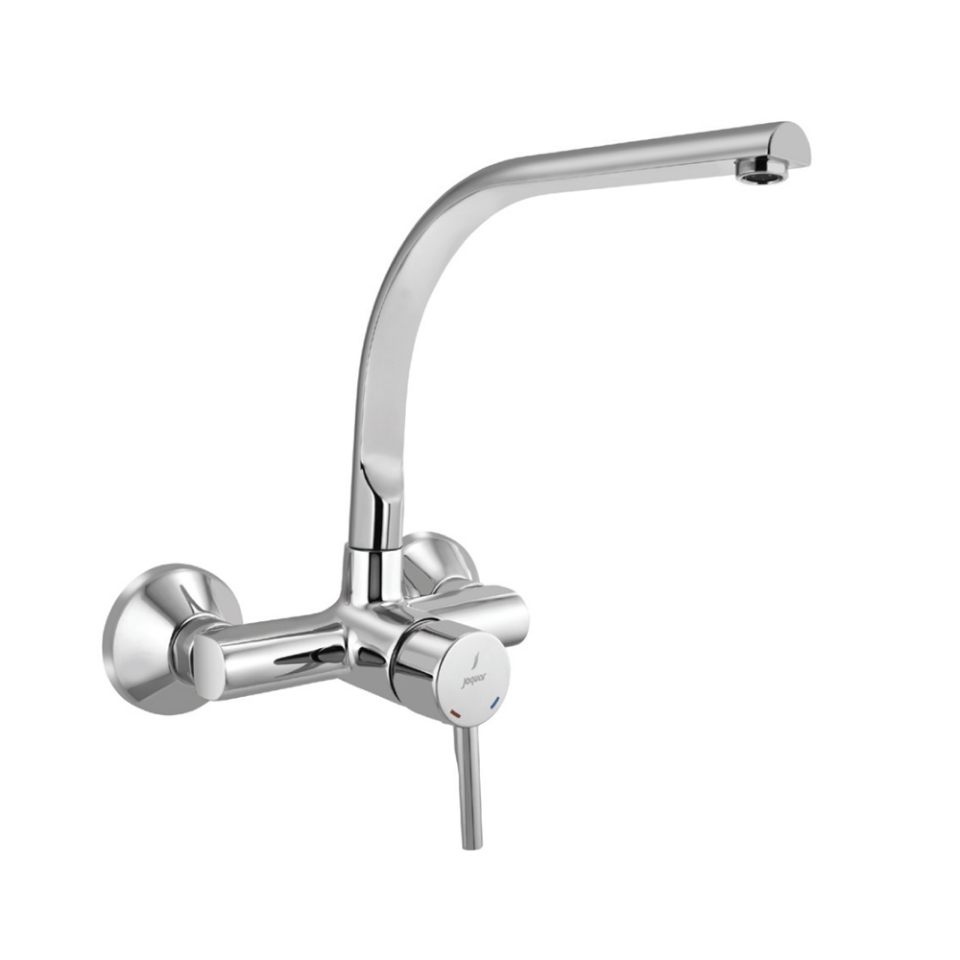

| Description | : | Single Lever Sink Mixer with Swinging Spout on Upper Side (Wall Mounted Model) with Connecting Legs & Wall Flanges |
Flow & Pressure
| Flow Rate | : | 14.22 LPM @ 3 bar |
| Recommended Water Pressure | : | 0.5 Bar – 5 Bar |
| Flow Regulator | : | Flow regulators can be used to regulate the flow rate. The product should be ordered with the appropriate suffix:
GA: 6.0 LPM @ 4.0 Bar pressure |
Cartridge Specification
- Cartridge with Temperature Limiter
- Cartridge with Brass Spindle
Life Cycle
| Standard Life Cycle | : | EN 817: 70,000 cycles |
| Enhanced Life Cycle | : | 2.1 LAC Cycles as per EN 817* 10.5 LAC Cycles (ON/OFF)* |
Brass Specification
| Brass Rod As per IS:319-1989 |
: | Cu (56.0-59.0), Pb (2.0-3.5), Fe (0.0-0.35), Total Impurity (0.0-0.7), Zn (Remainder) |
| Brass Sheets As per IS:410-1977 |
: | Cu (61.5-64.5), Pb (0.0-0.3), Fe (0.0-0.075), Total Impurity (0.0-0.6), Zn (Remainder) |
| Brass Pipe As per IS:407-1996 |
: | Cu (62.0-65.0), Pb (0.0-0.3), Fe (0.0-0.01), Total Impurity (0.0-0.6), Zn (Remainder) |
Performance & Testing
| Water Tightness | : | 16 bar (Pass) |
| Pressure Resistance | : | 25 bar (Pass) |
Finish
| Plating | : | Nickel – 10.0 micron Chromium – 0.3 micron |
| Salt Spray | : | 500 hours + Validated |
| Adhesion | : | Pass |
| Aerator Size | : | 20 × 1 |
| Aerator Approval | : | WRAS, ACS Approved |
Available Colour Finishing
- Black Chrome (BCH)
- Black Matt (BLM)
*Note: As per in-house testing conducted on an automatic life cycle testing machine manufactured by Giussani, Italy.
