Product Details
| Product Code | : | FLP-CHR-5357PMD |

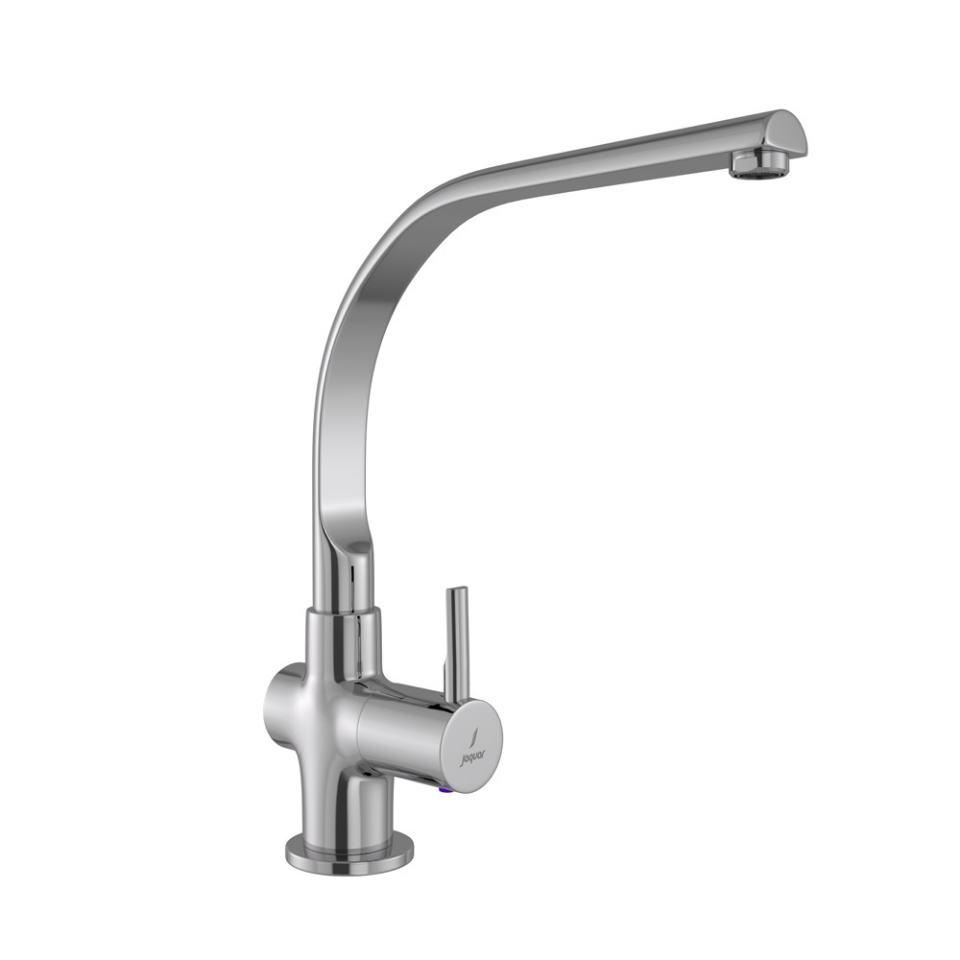

| Description | : | Sink Cock with Extended Swinging Spout (Table Mounted Model) |
Flow & Pressure
| Flow Rate | : | 15.83 LPM @ 3 bar |
| Recommended Water Pressure | : | 0.5 Bar – 5 Bar |
| Flow Regulator | : | By using flow regulators, the flow rate can be regulated. The product should be ordered with the appropriate suffix:
G: 2.5 LPM @ 4.0 Bar pressure |
Brass Specification
| Brass Ingots As per IS:1264-1997 |
: | Cu (58.0-63.0), Sn (0.0-1.0), Pb (0.5-2.5), Ni (0.0-1.0), Al (0.2-0.8), Mn (0.0-0.5), Total Impurity (0.0-2.0), Zn (Remainder) |
| Brass Rod As per IS:319-1989 |
: | Cu (56.0-59.0), Pb (2.0-3.5), Fe (0.0-0.35), Total Impurity (0.0-0.7), Zn (Remainder) |
| Brass Pipe As per IS:407-1996 |
: | Cu (62.0-65.0), Pb (0.0-0.3), Fe (0.0-0.01), Total Impurity (0.0-0.6), Zn (Remainder) |
| Brass Sheets As per IS:410-1977 |
: | Cu (61.5-64.5), Pb (0.0-0.3), Fe (0.0-0.075), Total Impurity (0.0-0.6), Zn (Remainder) |
| S.S. Sheets As per AISI:304 |
: | Ni (8.0-11.0), Cr (18.0-20.0), Mn (0.0-0.2), C (0.0-08), Fe (Remainder) |
Cartridge & Fittings Specification
| Fittings | : | Components have WRAS Approved for food grade conformity with Brass Housing and Spindle |
Life Cycle
| Standard Life Cycle | : | EN 200: 200,000 cycles |
| Enhanced Life Cycle | : | 5.0 LAC Cycles as per EN 200* |
Performance & Testing
| Water Tightness | : | 16 bar (Pass) |
| Pressure Resistance | : | 25 bar (Pass) |
Finish
| Plating | : | Nickel – 10.0 micron Chromium – 0.3 micron |
| Salt Spray | : | 500 hrs + Validated |
| Adhesion | : | Pass |
| Aerator Size | : | 20 × 1 |
| Aerator Approval | : | WRAS, ACS Approved |
Available Colour Finishing
- Black Chrome (BCH)
- Black Matt (BLM)
*Note: As per in-house testing done on an automatic life cycle testing machine made by Giussani, Italy.
