Product Details
| Product Code | ALD-CHR-681N |
| Description |

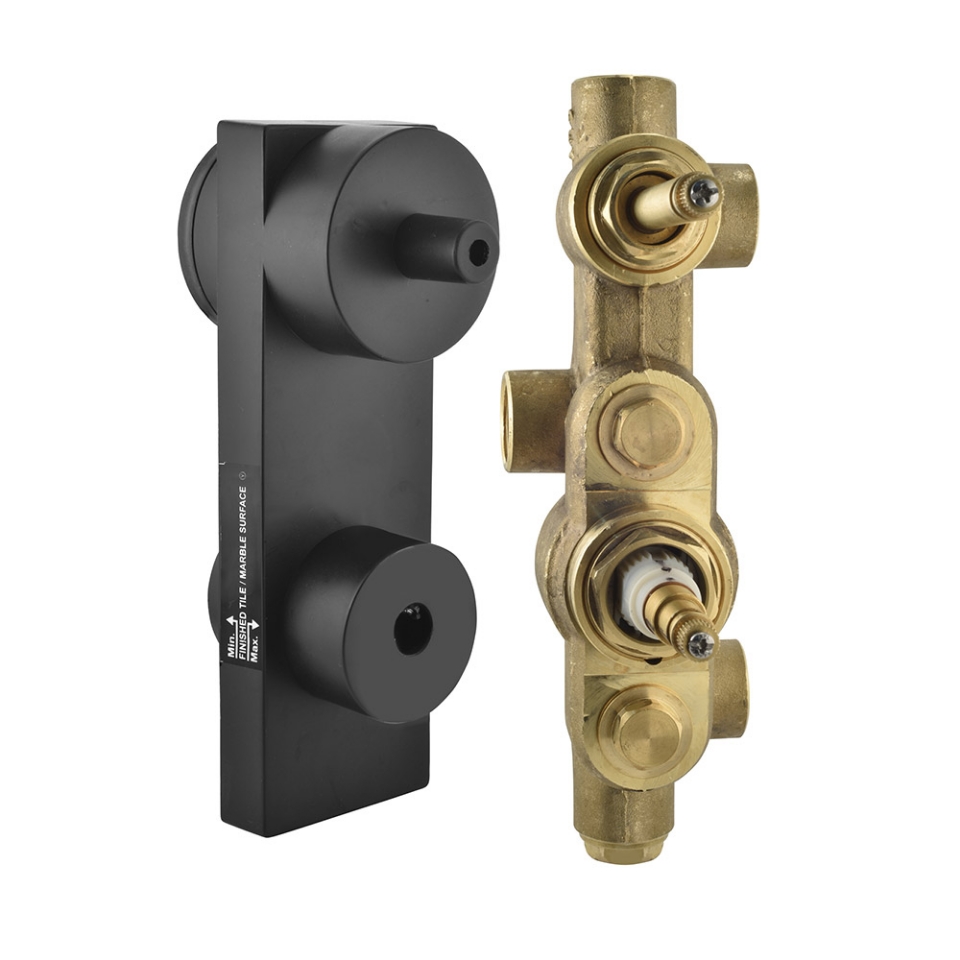

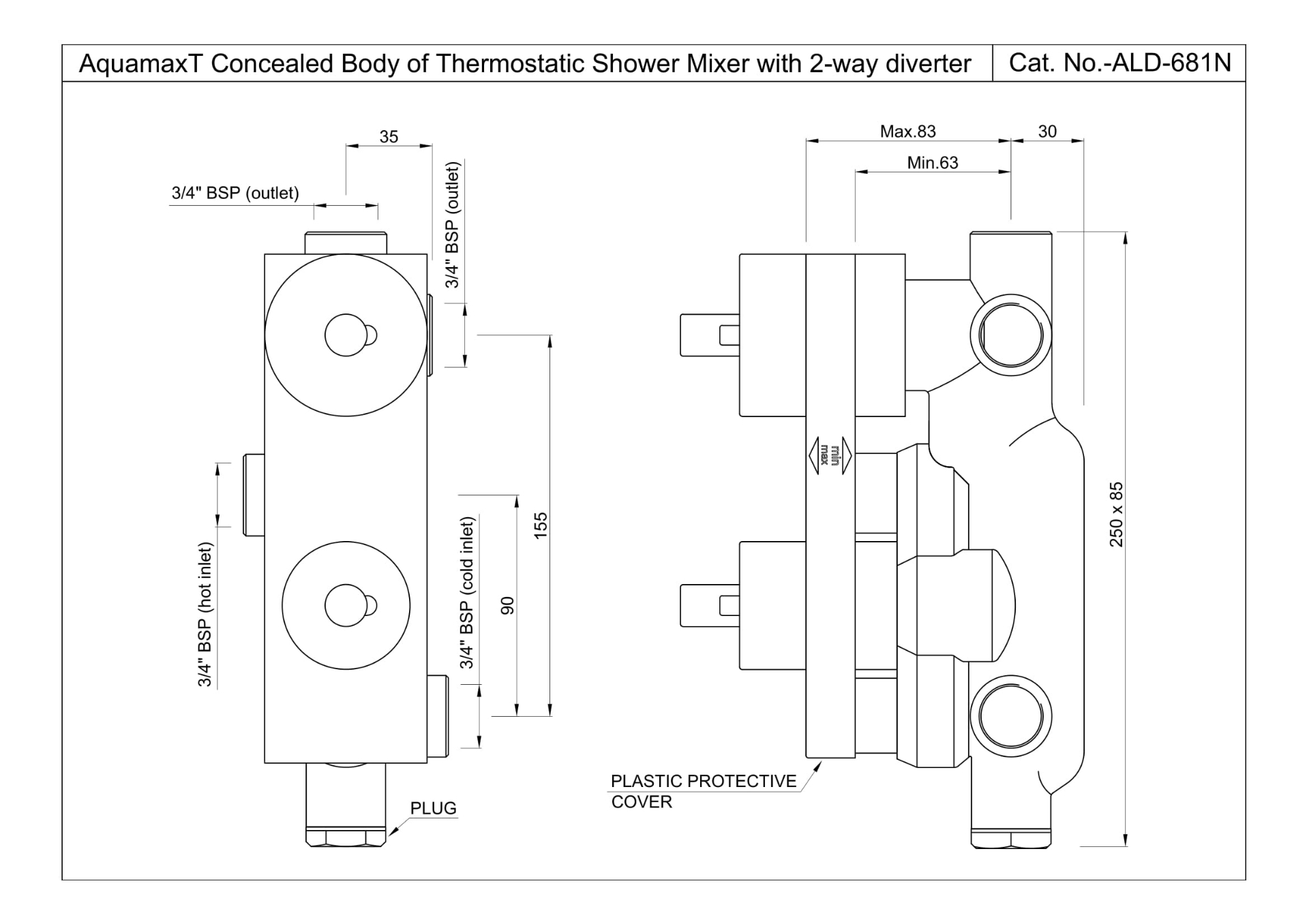

Aquamax concealed body of thermostatic shower mixer with 2-way diverter, supplied without exposed parts. |
| Flow Rate | 42.00 LPM @ 3 bar |
| Recommended Water Pressure | 0.2–5 bar |
| Available Finish | Chrome (CHR) |
Brass Specification
Brass Ingots – IS: 1264-1997
Cu: 58.0–63.0% |
Sn: 0.0–1.0% |
Pb: 0.5–2.5% |
Ni: 0.0–1.0% |
Al: 0.2–0.8% |
Mn: 0.0–0.5% |
Total Impurity: 0.0–2.0% |
Zn: Remainder
Sn: 0.0–1.0% |
Pb: 0.5–2.5% |
Ni: 0.0–1.0% |
Al: 0.2–0.8% |
Mn: 0.0–0.5% |
Total Impurity: 0.0–2.0% |
Zn: Remainder
Brass Rod – IS: 319-1989
Cu: 56.0–59.0% |
Pb: 2.0–3.5% |
Fe: 0.0–0.35% |
Total Impurity: 0.0–0.7% |
Zn: Remainder
Pb: 2.0–3.5% |
Fe: 0.0–0.35% |
Total Impurity: 0.0–0.7% |
Zn: Remainder
Product Specifications
-
Cartridges made from high-performance thermostatic polymer materials
designed to meet global standards for both high- and low-pressure applications. -
High-technology thermoplastic polymer helps minimize limescale buildup
for reliable and consistent performance. -
Standard Temperature Range:
15°C to 60°C (59°F to 104°F) -
Shower mixer incorporates a ceramic cartridge for diverting water
between two outlets. - Protected against backflow for enhanced system safety.
Performance Specifications
| Water Tightness | 16 bar – Pass |
| Pressure Resistance | 25 bar – Pass |
| Available Finish | Chrome (CHR) |
Any life-cycle performance marked with an asterisk (*) is based on in-house
testing conducted using an automatic life-cycle testing machine manufactured
by Giussani, Italy.
Every effort has been made to ensure factual accuracy. Product information
may be subject to change based on requirements across different sites,
markets, and/or countries. A variation of up to 10% in flow rate may occur.
Jaquar reserves the right to make necessary amendments at any time without
prior notice.
