Product Details
| Product Code | ALD-CHR-081 |

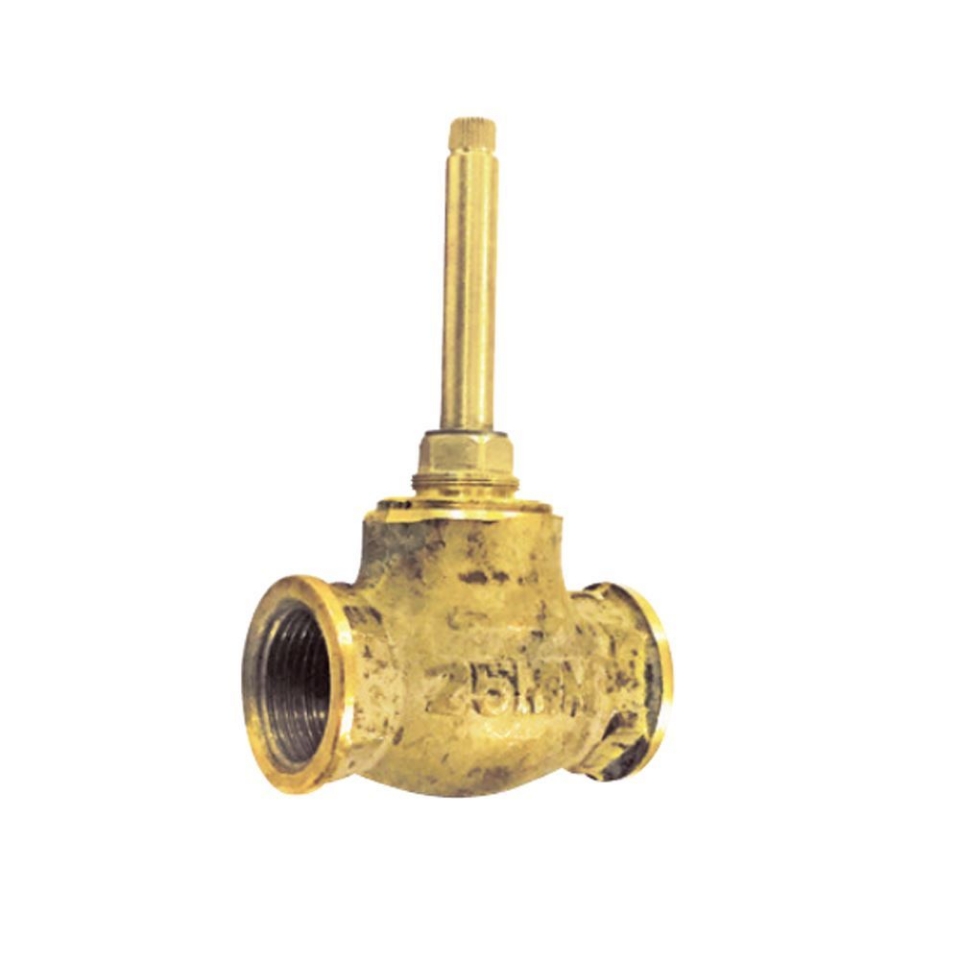

| Description | Concealed body of flush cock suitable for 25 mm pipeline with protection cap, supplied without exposed parts. |
| Flow Rate | 90.46 LPM @ 3 bar |
| Recommended Water Pressure | 0.5–5 bar |
| Available Finish | Chrome (CHR) |
Brass Specification
Brass Ingots – IS: 1264-1997
Cu: 58.0–63.0% |
Sn: 0.0–1.0% |
Pb: 0.5–2.5% |
Ni: 0.0–1.0% |
Al: 0.2–0.8% |
Mn: 0.0–0.5% |
Total Impurity: 0.0–2.0% |
Zn: Remainder
Sn: 0.0–1.0% |
Pb: 0.5–2.5% |
Ni: 0.0–1.0% |
Al: 0.2–0.8% |
Mn: 0.0–0.5% |
Total Impurity: 0.0–2.0% |
Zn: Remainder
Brass Rod – IS: 319-1989
Cu: 56.0–59.0% |
Pb: 2.0–3.5% |
Fe: 0.0–0.35% |
Total Impurity: 0.0–0.7% |
Zn: Remainder
Pb: 2.0–3.5% |
Fe: 0.0–0.35% |
Total Impurity: 0.0–0.7% |
Zn: Remainder
Fittings Specification
- Components are WRAS approved for food-grade conformity.
- Brass housing and spindle construction for reliable performance and durability.
Performance Specifications
| Life Cycle | EN 200: 200,000 cycles (Standard) 5.0 lakh cycles as per EN 200* |
| Water Tightness | 16 bar – Pass |
| Pressure Resistance | 25 bar – Pass |
| Available Finish | Chrome (CHR) |
Life-cycle performance marked with an asterisk (*) is based on in-house
testing conducted using an automatic life-cycle testing machine manufactured
by Giussani, Italy.
Every effort has been made to ensure factual accuracy. Product information
may be subject to change based on requirements across different sites,
markets, and/or countries. A variation of up to 10% in flow rate may occur.
Jaquar reserves the right to make necessary amendments at any time without
prior notice.
