Product Details
| Product Code | ALD-CHR-079N |

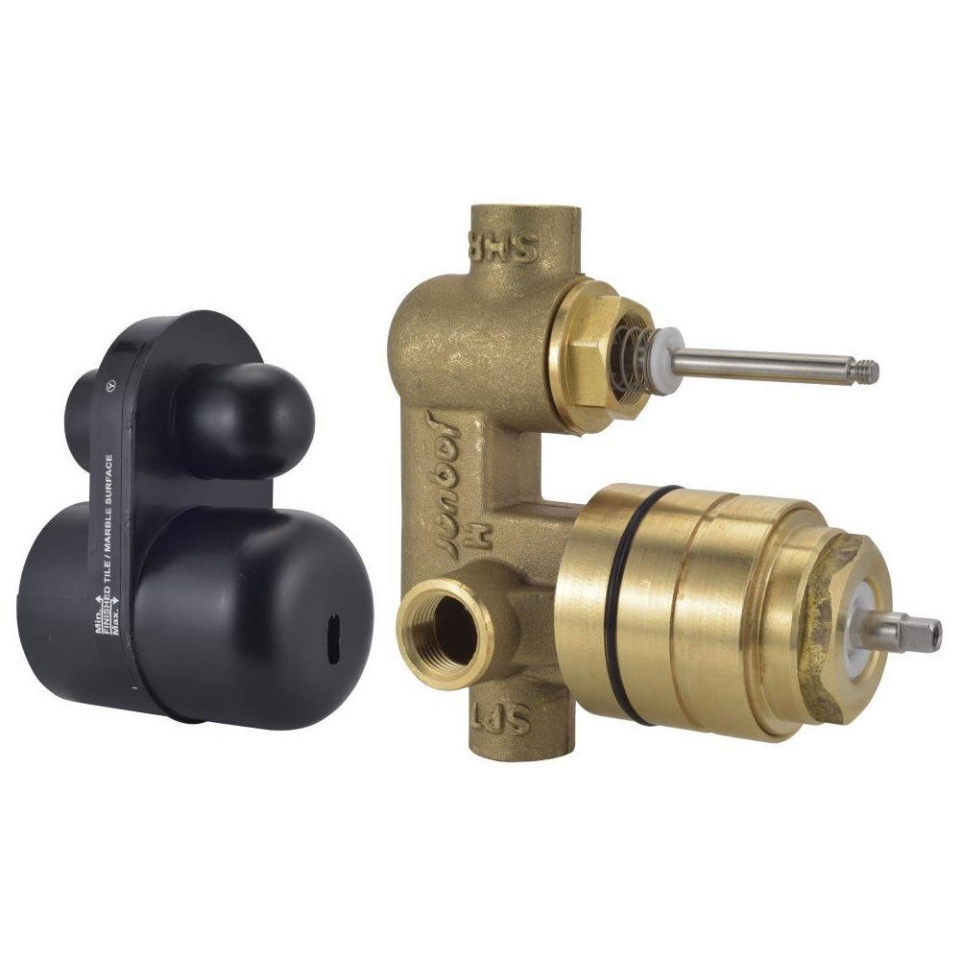

| Description | Concealed body for single-lever high-flow diverter with button assembly, supplied without exposed parts. |
| Flow Rate | 48.94 LPM @ 3 bar |
| Recommended Water Pressure | 0.5–5 bar |
| Available Finish | Chrome (CHR) |
Material Composition
Brass Ingots – IS: 1264-1997
Cu: 58.0–63.0% |
Sn: 0.0–1.0% |
Pb: 0.5–2.5% |
Ni: 0.0–1.0% |
Al: 0.2–0.8% |
Mn: 0.0–0.5% |
Total Impurity: 0.0–2.0% |
Zn: Remainder
Sn: 0.0–1.0% |
Pb: 0.5–2.5% |
Ni: 0.0–1.0% |
Al: 0.2–0.8% |
Mn: 0.0–0.5% |
Total Impurity: 0.0–2.0% |
Zn: Remainder
Brass Rod – IS: 319-1989
Cu: 56.0–59.0% |
Pb: 2.0–3.5% |
Fe: 0.0–0.35% |
Total Impurity: 0.0–0.7% |
Zn: Remainder
Pb: 2.0–3.5% |
Fe: 0.0–0.35% |
Total Impurity: 0.0–0.7% |
Zn: Remainder
Cartridge Specifications
- Cartridge with temperature limiter
- Cartridge with brass spindle
- Life Cycle:
EN 817 – 70,000 cycles (Standard); 2.1 lakh cycles as per EN 817*;
10.5 lakh cycles (ON/OFF)* - Water Tightness:
16 bar – Pass - Pressure Resistance:
25 bar – Pass
Available Finish
Chrome (CHR)
Every effort has been made to ensure factual accuracy. Product information may
be subject to change based on requirements across different sites, markets,
and/or countries. A variation of up to 10% in flow rate may occur.
Jaquar reserves the right to make necessary amendments at any time without
prior notice.
