General Information
| Product Code | : | ITS-WHT-6953NBIPP |
| Brand | : | Jaquar |
| Colour | : | White |
| Type | : | Wall Mounted WC – P TRAP |
| Material | : | Ceramic – Vitreous China (VC) |
Product Specification

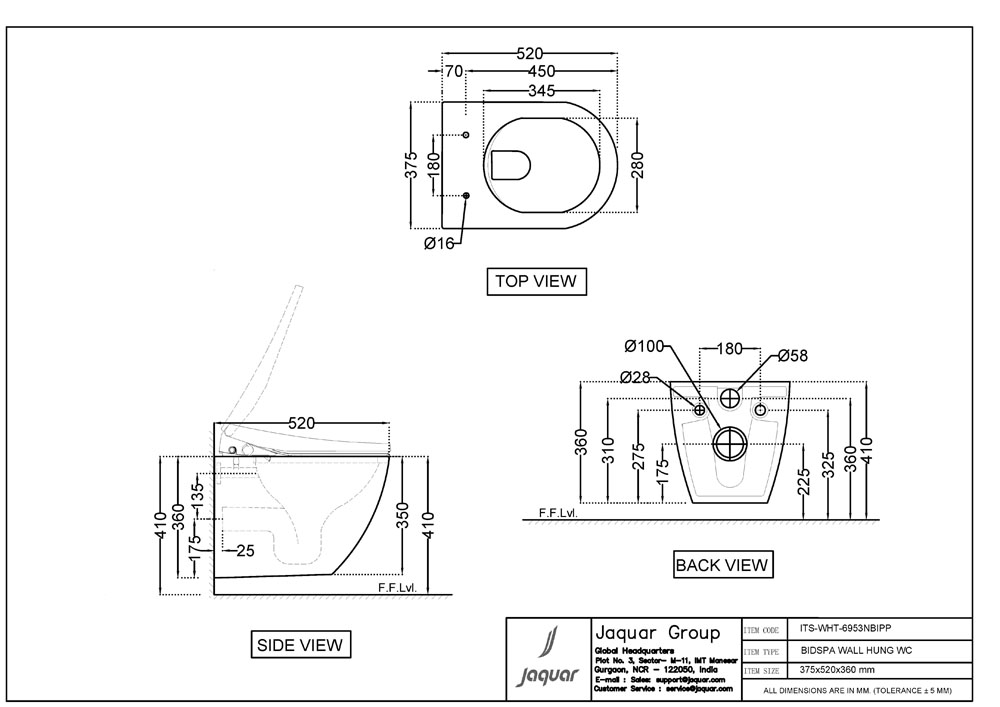

| Product Dimension | : | 375 × 520 × 360 mm |
| Bowl Opening (Inner Dimension) | : | 280 × 345 mm |
| Product Net Weight | : | 24.5 kg |
| Product Gross Weight | : | 31.2 kg |
| Packaging Dimension | : | 440 × 410 × 530 mm |
| Outlet | : | Horizontal |
| Inlet and Outlet Hole Dimension | : | Internal diameter of inlet hole: Ø 58 ± 3 mm External diameter of outlet hole: Ø 100 ± 5 mm |
Product Features
- Blind Installation
- Rimless Bowl Design
- Detachable Slim Seat Cover
- Trap Glaze
- Dual Flush – 2.5 / 4.5 LPF
- Anti Germ Glaze
- Intelligent Seat
Intelligent Seat Features
- Adjustable Seat Temperature – 33 / 37°C
- Adjustable Water Temperature – 35 / 38°C
- Adjustable Air Temperature – 33 / 38 / 43°C
- Anti-Bacterial Seat, Nozzle and Ceramic
- LED Night Light
- Air Dryer
- Front & Rear Wash Nozzle
- Adjustable Water Pressure
- Instant Heating Technology
- Self-Cleaning
- Water Massage Cleaning
Accessories Provided
| Electronic PP Seat Cover | : | ITS-WHT-89107 |
| Inlet Outlet Gasket | : | ZPS-WHT-GK01 |
| Fixing Kit | : | ZPS-WHT-FB13 |
Accessories Recommendation
| Rack Bolt | : | ZPS-SNS-RB07N |
| Concealed Cistern | : | JCS-WHT-2400S, 2400P, 2400, 2400WS, 2400WP, 2400FS, 2400FP, 2431P, 2431FP, 2431, 2431S, 2431FS |
Care and Cleaning Guidelines
- Vitreous china sanitary ware products are fragile in nature and need to be
handled with care at all times during storage, handling, installation and use
thereafter to avoid personal injury. - The product is heavy and it is recommended that two persons hold it while
it is being fixed. - Carefully inspect the new product for damage before installation.
- Risk of product damage: Over-tightening may cause breakage
or chipping of vitreous china. - Risk of external leakage: Do not lift or rock the bowl
after placement. - Always test your cleaning solution on an inconspicuous area on the product
before applying it to the entire surface. - Do not allow cleaners to sit or soak on the product.
- Use a soft, dampened sponge or cloth to clean. Never use abrasive materials
such as a bristle brush or scouring pad. - Wipe surfaces clean and rinse completely with water immediately after
applying cleaners. - Clean chrome and stainless-steel surfaces once a week. Do not use cleaners
containing chloride on chrome or stainless-steel surfaces. If used, rinse
the surface immediately to prevent corrosion. - Wherever chrome plating is used on the products, use only warm water to
clean and then dry with a soft cloth.
Quality Management System
ISO 9001 Certified Quality Management System
